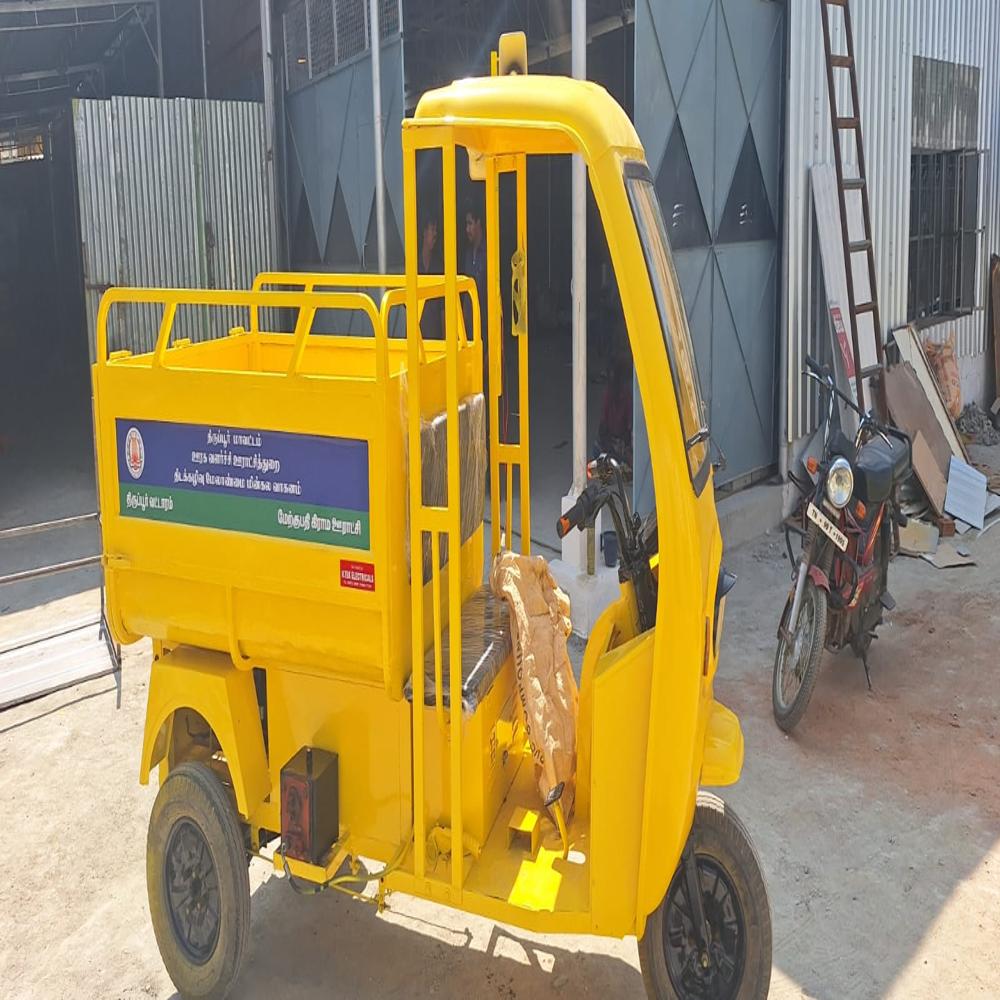

electric load vehicle

Name: electric load vehicle
Brand: MAN POWER ELECTRICALS
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

electric load vehicle Specification

Model No
LOAD-EV2024

Vehicle Model
Electric Load Carrier

Range
60-80 km per charge

Charging Time
6-8 hours

Top Speed
25 km/h

Manufacturing Year
2024

Ground Clearance
220 mm

Torque
35 Nm

Product Model
ELE-LOAD-TRK-01

Seat Capacity (Person)
1

Charger Type
Automatic Electric Charger

Features
Regenerative braking, reinforced chassis, digital instrument cluster

Batteries Type
Lead Acid/Deep Cycle

Vehicle Type
Three Wheeler Electric Cargo Vehicle

Frequency
50 - 60 Hz

Wheelbase
2000 mm

Charger Capacity
48V/10A

Weight
450 kg (kerb weight)

Usage & Applications
Ideal for industrial material transport, warehouse logistics, and commercial deliveries

Motor Power
1000 W Brushless DC Motor

Battery Capacity
48V/100Ah

Battery Life
3-4 years or up to 1200 cycles

Drive Type
Rear Wheel Drive

Input Voltage
220 - 240 V AC

Tyre Type
Heavy Duty Tubeless

Color Options
Blue, Green, Customizable

Turning Radius
3.5 m

Body Material
High-strength steel with powder coated finish

Brake Type
Front and rear drum brakes

Lighting
LED Headlamps and Tail lamps

Waterproof Rating
IP65 for electrical components

Payload Capacity
800 kg

Suspension
Front: Telescopic, Rear: Leaf Spring

Deck Size
1800 mm x 1200 mm

Overall Dimensions (L x W x H)
3200 mm x 1200 mm x 1800 mm

Dash Display
Digital Multi-info Display

electric load vehicle Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

About electric load vehicle

Our Electric Vehicle (EV) is designed with advanced electric drive technology that provides efficient, eco-friendly, and cost-effective transportation. It operates using a high-performance rechargeable battery and electric motor, eliminating the need for petrol or diesel and reducing carbon emissions.

This electric vehicle offers smooth driving performance, low maintenance cost, and energy efficiency, making it suitable for urban transportation, industrial campuses, and commercial mobility solutions. The vehicle is equipped with a durable battery system, strong body structure, and user-friendly controls for safe and comfortable operation.

Key Features

Environment-friendly with zero emissions
Rechargeable battery with long service life
Low running and maintenance cost
Smooth and noise-free operation
Strong build quality and reliable performance

Specifications

Power Source: Electric Battery
Motor Type: High Efficiency Electric Motor
Charging Time: 48 Hours (Approx.)
Application: Personal / Commercial Transportation
Condition: New

Applications

City transportation
Industrial and factory mobility
Campus and resort transportation
Delivery and logistics services

Rugged Construction and Load Capacity

Engineered with high-strength steel and finished with a durable powder coating, the vehicle is built to withstand daily operational challenges. Reinforced chassis and a spacious 1800 mm x 1200 mm deck make it suitable for carrying bulky materials up to 800 kg, ensuring that businesses can transport more with each trip without compromising safety or stability.

Performance and Efficiency

Our electric load vehicle features a powerful 1000 W brushless DC motor, rear-wheel drive, and regenerative braking for efficient operations. With a 48V/100Ah battery, it delivers a dependable range of 60-80 km on a full charge, while a top speed of 25 km/h ensures timely deliveries. The heavy-duty tubeless tyres and advanced suspension provide superior ride comfort, even when fully loaded.

Driver Comfort and Safety

Fitted with a telescopic front and reliable leaf spring rear suspension, the vehicle absorbs shocks effectively across variable terrains. The digital multi-info display, LED headlamps and taillamps, and ergonomic controls help keep the driver informed and safe, making operations easier and reducing fatigue during long duty hours.

FAQ's of electric load vehicle:

Q: How does the electric load vehicle ensure stability and safety while carrying heavy cargo?

A: The vehicle is equipped with a reinforced, high-strength steel chassis and a wide 1800 mm x 1200 mm deck area. The robust suspension (telescopic front and leaf spring rear) and heavy-duty tubeless tyres provide stability and support, even on uneven surfaces, while front and rear drum brakes ensure consistent stopping power.

Q: What is the charging process for the electric load vehicle, and how long does it take to fully charge?

A: Charging is straightforward using the automatic electric charger (48V/10A). It requires an input voltage of 220-240 V AC (50-60 Hz). A full charge takes approximately 6-8 hours, making it suitable for overnight charging and daily operation schedules.

Q: Where can this electric load vehicle be effectively utilized and what are its main applications?

A: This vehicle excels in industrial complexes, warehouses, factories, and urban delivery routes. It is specifically designed for material transport, warehouse logistics, and commercial deliveries, adapting to various industrial and commercial needs.

Q: What benefits does the electric load vehicle offer over conventional fuel-based cargo vehicles?

A: It provides eco-friendly transportation with zero emissions and significantly lower running costs. The regenerative braking system enhances energy efficiency, while minimal maintenance is required compared to internal combustion vehicles. The electric drive also ensures quieter operation, benefiting both operators and the environment.

Q: How reliable are the electrical components in challenging weather conditions?

A: The vehicle's electrical components carry an IP65 waterproof rating, ensuring protection against dust and water ingress, thus delivering reliable performance even in monsoon or dusty industrial environments.

Q: What options are available for customization, particularly regarding color?

A: Standard color options include Blue and Green. However, the manufacturer offers customizable colors to match business branding or specific operational needs, upon request during the order process.
